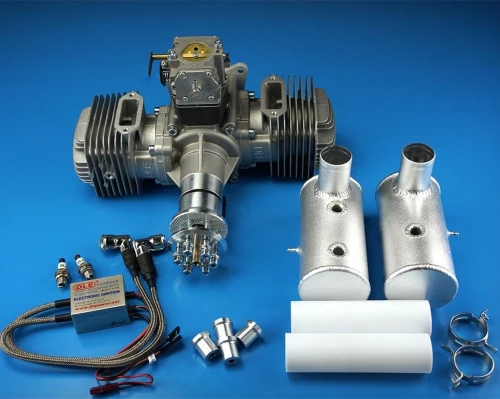

Promo ⌛ ZYHOBBY DLE 170 170cc Twin Engine With Rear Exhaust And Muffler ????

DLE170 engine


This engine is not toy. For your own safety, please read the manual carefully before operation. DLE is not responsible for all injuries result from the use.

Before every use, check the engine assembly, propeller and airframe carefully for loose screws and nuts. (Loctite242,243) is strongly recommended on all the screws.



During the break-in process, engine must running with shock absorber installed. Or the engine will be seriously damaged by vibration.



Always stand clear of and behind the propeller; never allow anyone including yourself, to be in front of or to the sides of the propeller when starting or running the engine. Anyone near the engine should wear protective eyewear. Do not wear loose clothing near the engine or propeller

DLE 170

SPECIFICATIONS:

Performance:17.5HP/7500rpm

Idle Speed: 1100 rpm/min

35Kg Static Thrust / 100 meters Altitude

1.5Kg Static Thrust / 1800 meters Altitude

The specification of the aircraft propeller:30 X 12; 32 X 10;

the type of the sparking plug :NGK CM6

Parameter:


Exhaust Amount :	170cm3
diameter × stroke :	52mm×40mm
Ratio of compression:	9.5 :1
Ratio of lubricating capacity :	30 : 1
Weight: Main engine:	3620g
Exhaust pipe:	470g
Ignition equipment:	190g
Ignition volt:	4.8V-8.4V
