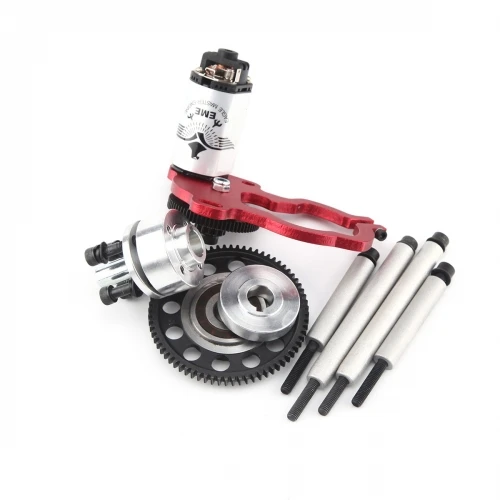

Electric Starter for DLE30 DLE 35RA EME 35 Gasoline Engine

No instructions included. Grease your gears after assembly. DO NOT operate without a prop.

Note Warranty is void if you do not grease your gears.

This 100A Rcexl switch can match the starter


Specification:

Total Net Weight: 560g
Working Voltage: 3-15V (12V for the best )
Motor Length: 57mm
Motor Diameter: 30mm 2;
Application: Suitable for EME35, DLE30 DLE 35 RA Gas engines
The Following Alternative Recommended Equipments for Reference:
WE RECOMMENDED ELECTRIC SWITCH (EME-S-12).
Recommended Brushed ESC: 60A (need to buy separately)
Recommended Electric Switch: (Item No.: EME-S-12) (need to buy separately)
Coming with protection equipment, when the voltage and current exceed the specified value, the electric starter will automatically open and close.
Acting as a brushed ESC and using radio controller to control the electric starter, so users no need to purchase another ESC.
Features: 1. The starter is equipped with single bearing, so power only transfers from the motor to engine. But after the engine started, the power would not pass to motor, so as to protect the motor. Kindly Remark: When mounting and testing the starter, teeth of gear must be clenched properly and solid oil lubrication should be coated on the surface, otherwise the gear will be abraded soon. SUITABLE FOR AIRPLANES

Install Sketch map

1. Brushed motor (including gear) (Product number: EME35-S-1)
2. Foot post + screw (Product number: EME35-S-2)
3. Fixing plate (Product number: EME35-S-3)
2 color: blue, red (randomly sent)
5. Large gear sleeve (including deep or shallow bearings) (Product number: EME35-S-5-A, EME35-S-5-B)
6. Double gear (double gear) (Product number: EME35-S-6)
7. Output shaft (Product number: EME35-S-7)
8. Front, middle and rear propeller pads (Product number: EME35-S-8)
9. Double gear fixing bolts (Product number: EME35-S-9)
10. Bearing (Product number: EME35-S-10)
